Fiber to Free-space Isolators
Features:
- Excellent high power beam quality
Fiber To Free Space Isolators

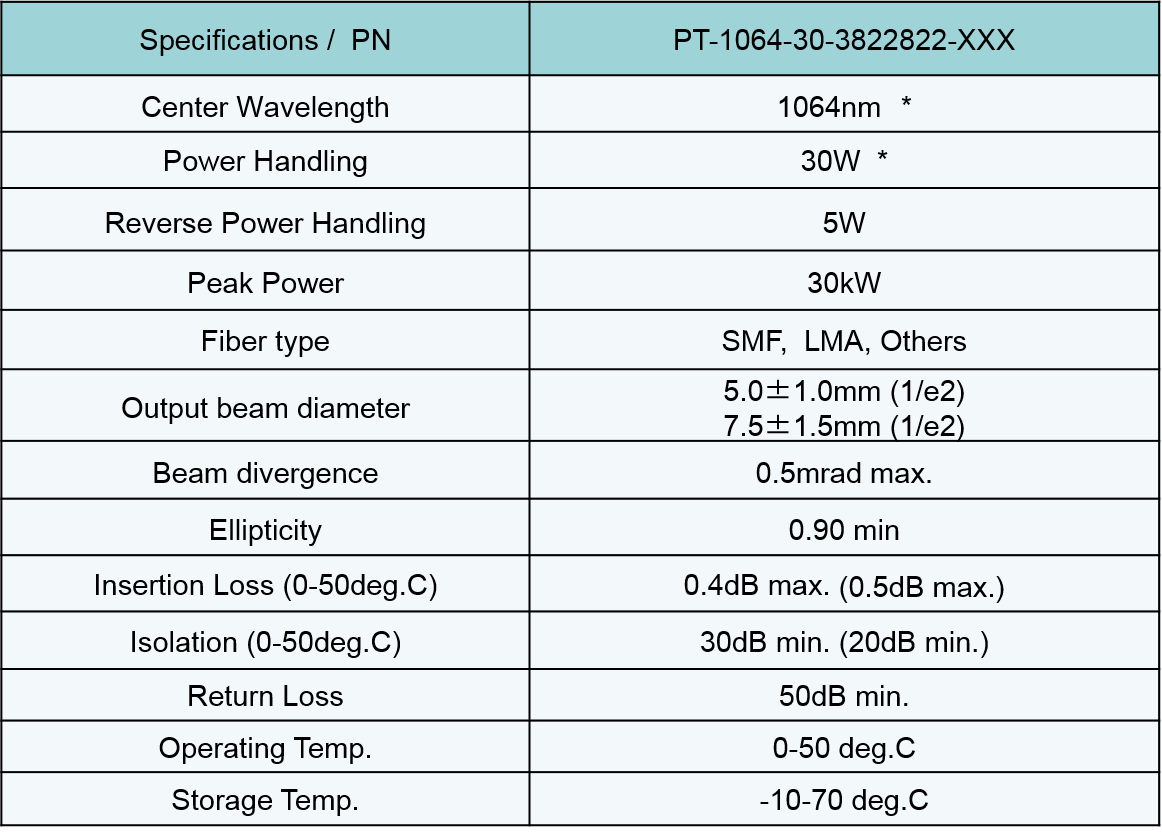

| Specifications / PN | PT-1064-30-3822822-XXX |
|---|---|
| Center Wavelength | 1064nm * |
| Power Handling | 30W * |
| Reverse Power Handling | 5W |
| Peak Power | 30kW |
| Fiber type | SMF, LMA, Others |
| Output beam diameter | 5.0±1.0mm (1/e2) 7.5±1.5mm (1/e2) |
| Beam divergence | 0.5mrad max. |
| Ellipticity | 0.90 min |
| Insertion Loss (0 - 50deg. C) | 0.4dB max. (0.5dB max.) |
| Isolation (0 - 50deg. C) | 30dB min. (20dB min.) |
| Return Loss | 50dB min. |
| Operating Temp. | 0 - 50 deg. C |
| Storage Temp. | -10 - 70 deg. C |
