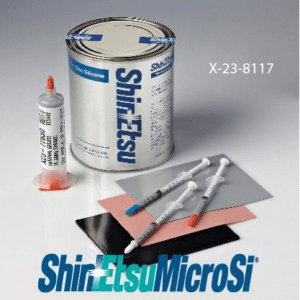

Thermal Grease X23-8117



Thermal Grease X23-8117

Shin-Etsu’s X-23-8117 product offering is a thermal interface material developed and manufactured with ease of application in mind. Specifically formulated to include an application chemical optimized for screen printing and other application techniques, X-23-8117 outperforms in high volume manufacturing environments. With high Thermal Conductivity coupled with low Thermal Resistance, this product often exceeds thermal management requirements of high-performance semiconductor devices. Through superior heat dissipation, X-23-8117 allows electronic devices to remain cooler and increases long-term reliability.

Links to Technical Data Sheets

X23-8117 (189.82kB)

X
  • To access data sheets and product information from Shin-Etsu MicroSi, simply complete the form and click "View". Links will then be enabled.

  • This field is hidden when viewing the form

Product Description

Material Properties

PropertyValue
Viscosity (pre-flash)80
Viscosity (post-flash)700
Appearance“Gray”
Specific Gravity2.8
Thermal Conductivity * (W/m °K)6.2
Thermal Resistance ** mm2•K/W6.1
Bond Line Thickness (um) @20psi26

Sizes Available

ContainerWeight
Syringes:“0.5, 1, 1.5, 3”
Cartridges:“55 gm”
Bulk:“1.0 Kg”
Storage Conditions“32°F to 85°F”
Custom Sizes AvailableContact Us
